CFW500 inverter has the following product features:
(1) Password to protect parameters
(2) Special engineering units (RPM, ºC, Nm, mA, %, kW, kWh, etc.)
(3) Backup all parameters (via SuperDrive G2 software of CFW500, memory card or memory)
(4) Up to two sets of different parameters can be saved in the memory of CFW500
(5) Set the switching frequency according to the application requirements
(6) Set the reference speed through the potentiometer
(7) Multi-speed control, up to 8 programmable speeds can be set
(8) Slip compensation
(9) Manual or automatic torque boost (V/F scalar mode), or automatic adjustment (VVW vector mode)
(10) Acceleration/deceleration ramp
(11) "S" type ramp
(12) DC braking
(13) Internal dynamic braking (products with structure size B and above)
(14) PID controller in closed-loop control
(15) Speed start/cross
(16) Sleep mode
(17) Hopping frequency or frequency range function
(18) Overload or overheat protection
(19) Overcurrent protection
(20) DC voltage suppression
(21) Fault record

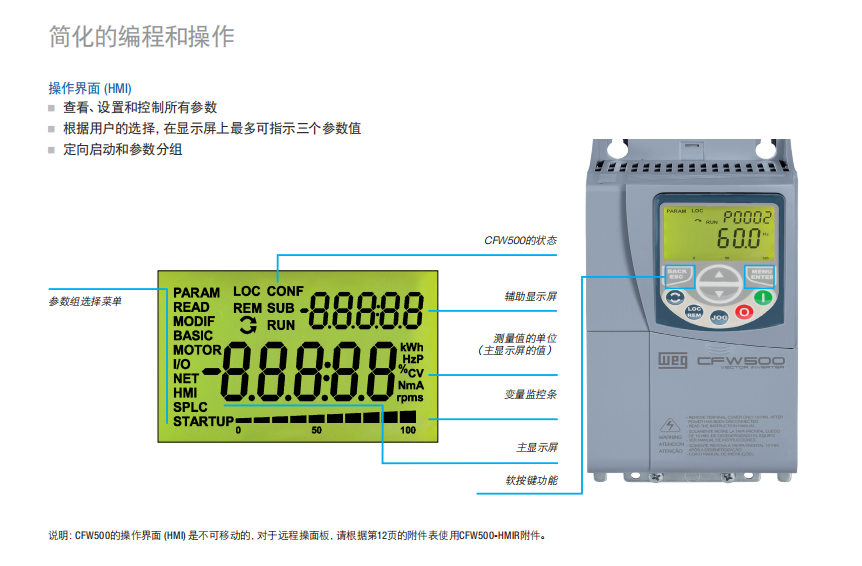

Simplified programming and operation
1、Operator Interface (HMI)
2、View, set and control all parameters
3、Up to three parameter values can be indicated on the display according to the user's selection
4、Targeted startup and parameter grouping
Flexible and efficient

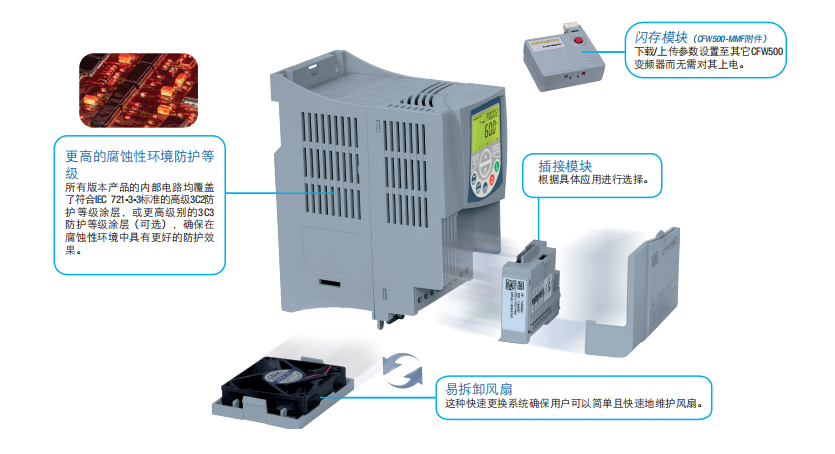

The CFW500 adopts a modern design concept, allowing users to choose the right configuration according to their needs, not only has excellent flexibility, but also can provide excellent performance. For the plug-in module version, the frequency converter comes with the CFW500-IOS module. For the version without plug-in modules, users can select appropriate plug-in modules according to their needs (each inverter can be extended by one module). All plug-in modules have built-in RS485 Modbus-RTU.
Installation of the CFW500 is very simple, and through the standard LCD display operator panel (HMI), the user can intuitively configure and operate the drive using the navigation menu. Via the flash module, it is also possible to download existing parameter settings from one CFW500 directly to other units without powering up the device.
The CFW500 is suitable for the following scenarios and products:
Extruders, conveyor belts, roller tables, fans/draught fans, centrifugal pumps, pelletizers/palletizers, cutting and welding machines, dryers and rotary furnaces, process metering pumps, agitators/mixers, rotary filtration machine, winding machine / uncoiler
